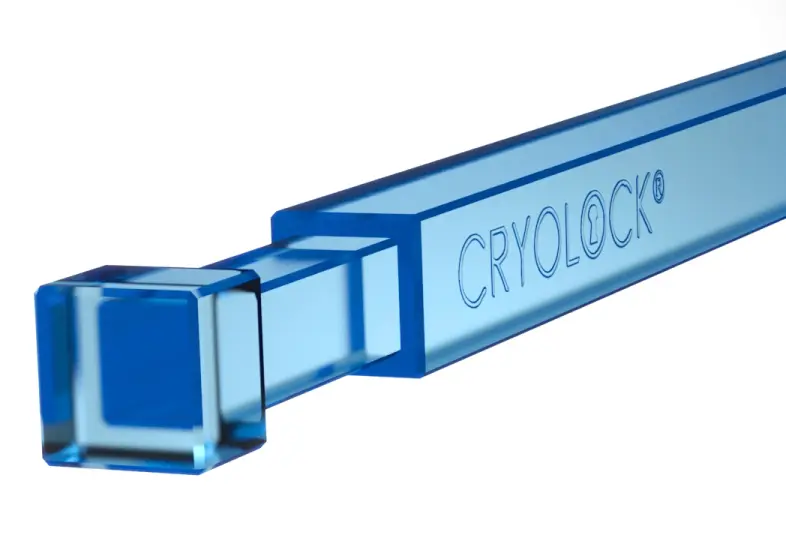

Cryolock®
Crafted to excel in in vitro fertilization (IVF) procedures,
Cryolock® stands as the pinnacle choice for cutting-edge vitrification
devices.
It secures the holding, cryopreservation, and efficient storage of
oocytes and embryos in liquid nitrogen with unparalleled precision.
Consists of the following two parts:

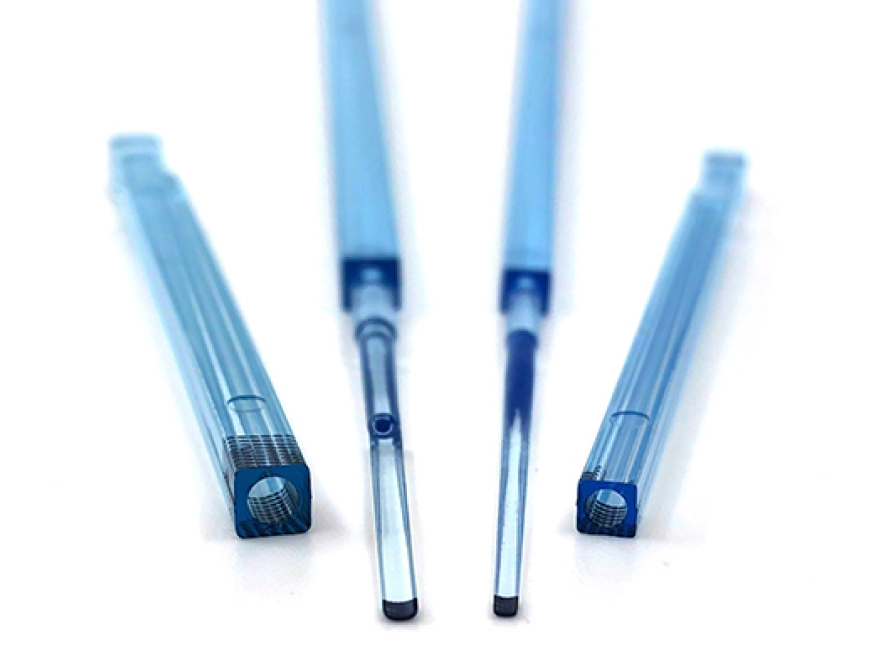

- The body is a square shape stick made of Polystyrene medical grade, has a fine concave tip where the oocytes or embryos are placed.
- The cap made of the same material, provides an airtight seal by coupling of two tapered surfaces in a 0.250” of sealing surface.
Cryolock® and S-Cryolock® - Vitrification Process Open System
Cryolock® and S-Cryolock® - Vitrification Process Closed System

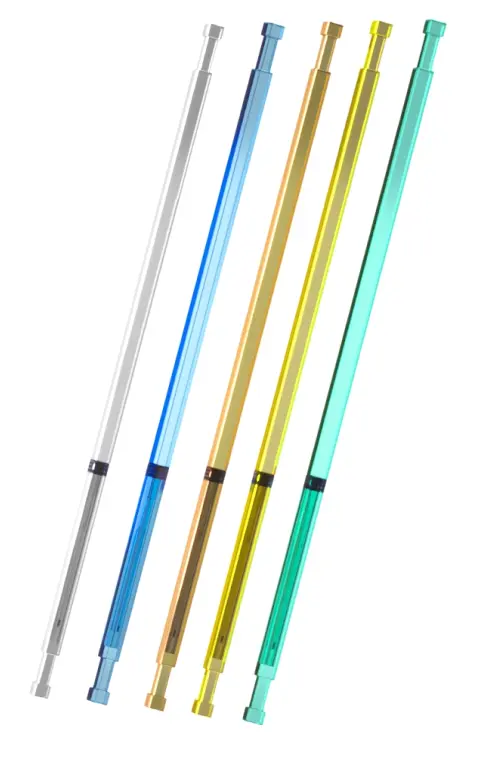

Specifications
- 1 cell MEA ≥ 80% expand blastocysts within 96h
- Endotoxin LAL ≤ 2 EU/Device.
- Sterility: SAL 10-6
- Cooling Rate:
- Closed system: -1,490°C/Min
- Open System: -19,800°C/Min
- Warming Rate:
- Closed System: +21,000°C/Min
- Open System: +27,000°C/Min
- Available on different colors: Clear, Blue, Green, Orange & Yellow .

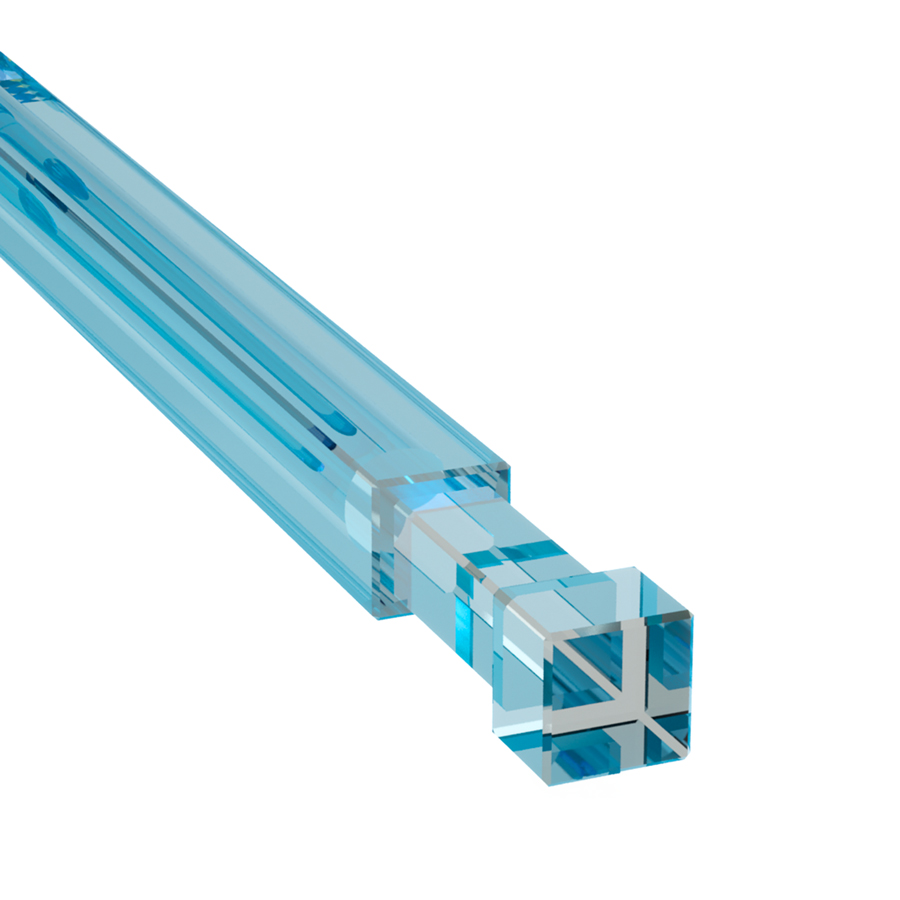

Features
- Manufactured in medical-grade polystyrene to ensure integrity and safety.
- Exclusive cap design for an airtight seal at both room and freezing temperatures.
- Ample surface for labeling, facilitating sample identification.
- Available in various colors: Clear, Blue, Green, Orange, and Yellow.
- Cryolock® is more than a storage device; it’s a secure and effective solution for preserving oocytes and embryos.
- You can fit 6-7 units per goblet 10mm.

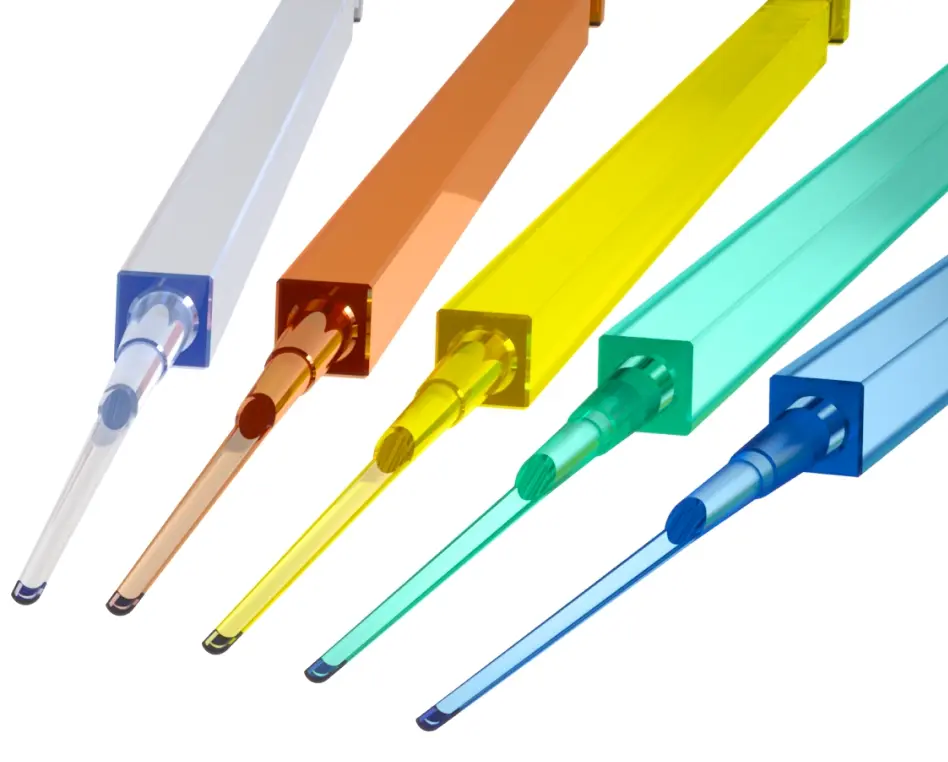

Intended Use
Cryolock® is a Cryopreservation Storage device that is intended
for use in vitrification procedures to contain and maintain human
1-cell stage embryos. In non-US countries: for Oocytes and/or Embryos.

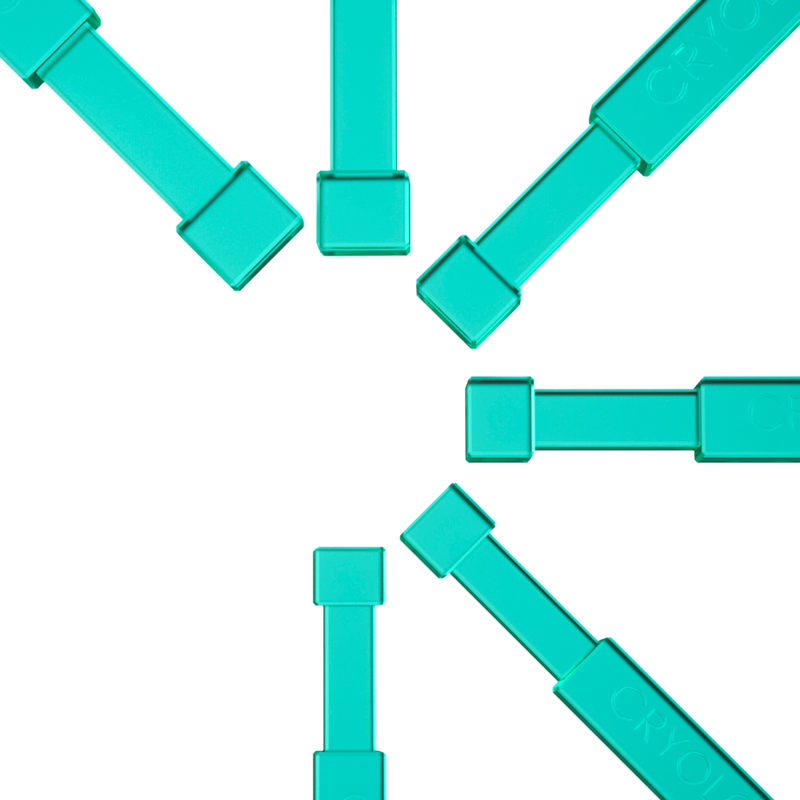

Design
Cryolock®, is a square shape stick, with four flat surfaces.
Both, The Cap and Body possess the same coefficient of expansion
ensuring an equally secure coupling at room temperature as well as low
cryogenic temperatures. Body and cap have gaps on their extremes, which
allow easy grip with forceps during manipulation.

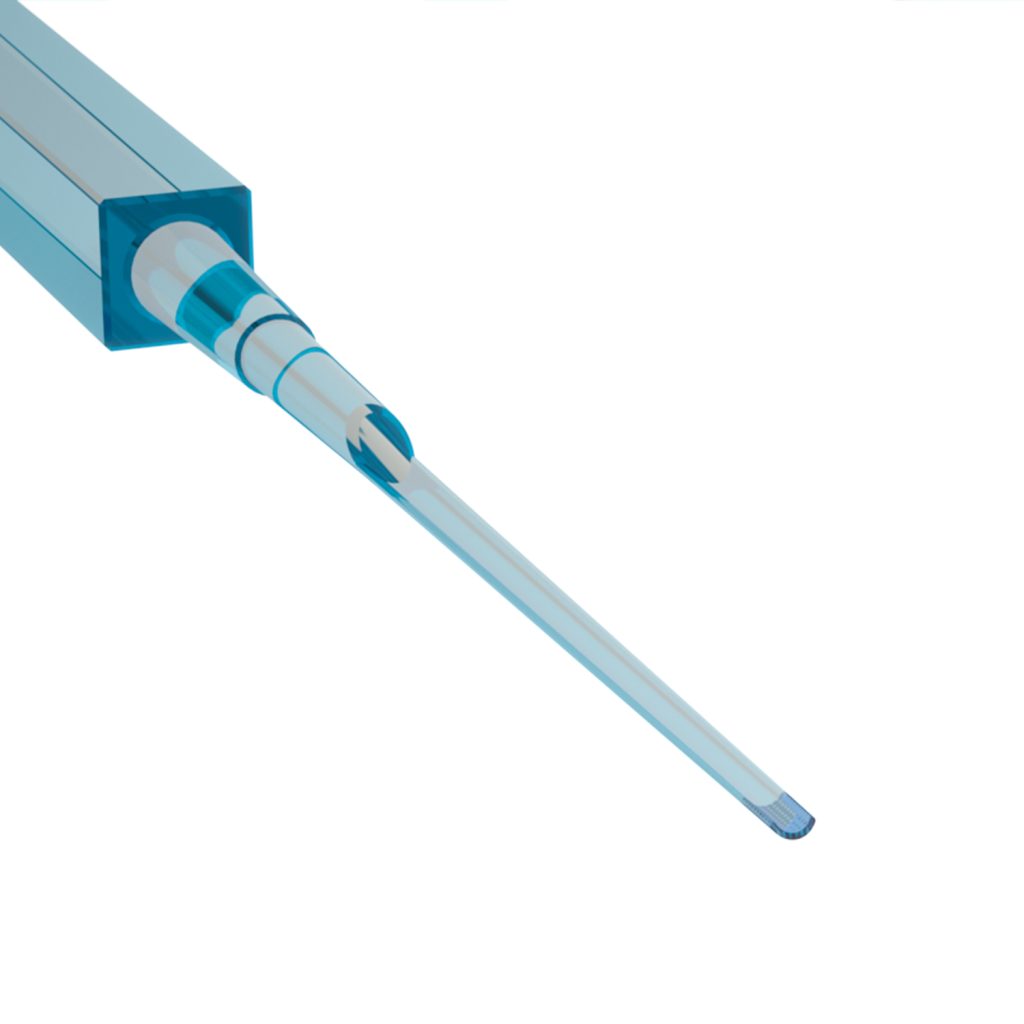

Material
Cryolock® components, body and cap are made of Polystyrene
medical grade plastic, which facilitates even temperature conduction
from side to side of the device.
CRYOLOCK®
Crafted to excel in in vitro fertilization (IVF) procedures, Cryolock®
stands as the pinnacle choice for cutting-edge vitrification devices.
It secures the holding, cryopreservation, and efficient storage of
oocytes and embryos in liquid nitrogen with unparalleled precision.
Consists of the following two parts:
- The body is a square shape stick made of Polystyrene medical grade, has a fine concave tip where the oocytes or embryos are placed.
- The cap made of the same material, provides an airtight seal by coupling of two tapered surfaces in a 0.250” of sealing surface.
Cryolock® and S-Cryolock® - Vitrification Process Open System
Cryolock® and S-Cryolock® - Vitrification Process Closed System
CRYOLOCK®
Specifications
- 1 cell MEA ≥ 80% expand blastocysts within 96h
- Endotoxin LAL ≤ 2 EU/Device.
- Sterility: SAL 10⁻⁶
- Cooling Rate:
- Closed System: -1,490°C/Min
- Open System: -19,800°C/Min
- Warming Rate:
- Closed System: +21,000°C/Min
- Open System: +27,000°C/Min
- Available in different colors: Clear, Blue, Green, Orange & Yellow.
CRYOLOCK®
Features
- Manufactured in medical-grade polystyrene to ensure integrity and safety.
- Exclusive cap design for an airtight seal at both room and freezing temperatures.
- Ample surface for labeling, facilitating sample identification.
- Available in various colors: Clear, Blue, Green, Orange, and Yellow.
- Cryolock® is more than a storage device; it’s a secure and effective solution for preserving oocytes and embryos.
- You can fit 6-7 units per goblet 10mm.
CRYOLOCK®
Intended Use
Cryolock® is a Cryopreservation
Storage device that is intended for use in vitrification procedures to
contain and maintain human 1-cell stage embryos. In non-US countries:
for Oocytes and/or Embryos.
CRYOLOCK®
Design
Cryolock®, is a square shape stick, with
four flat surfaces. Both, The Cap and Body possess the same coefficient
of expansion ensuring an equally secure coupling at room temperature as
well as low cryogenic temperatures. Body and cap have gaps on their
extremes, which allow easy grip with forceps during manipulation.
CRYOLOCK®
Material
Cryolock® components, body and cap are
made of Polystyrene medical grade plastic, which facilitates even
temperature conduction from side to side of the device.

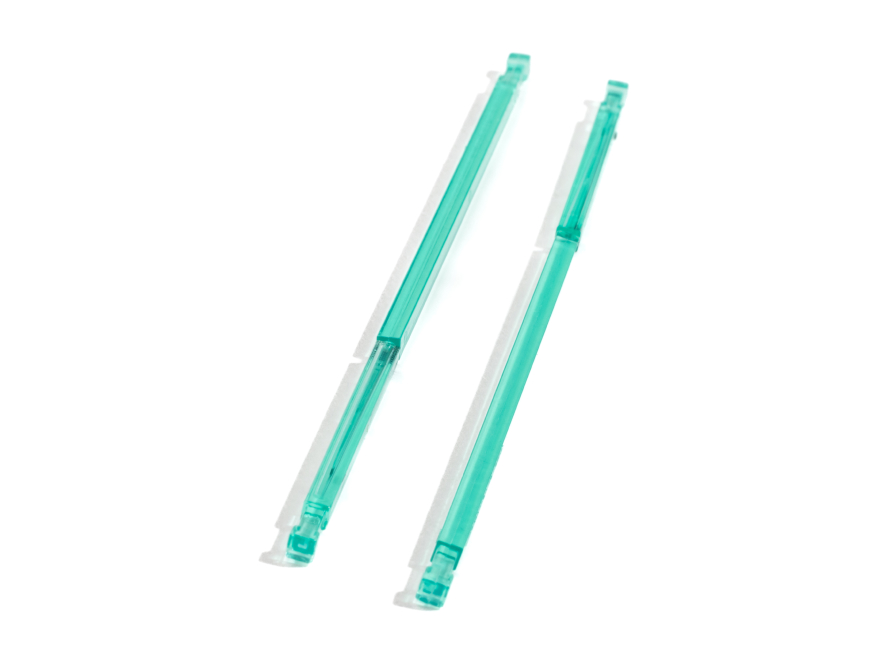

Instructions For Use (IFU)
Cryolock Family Devices may be used as an Open or a Closed System Device.
