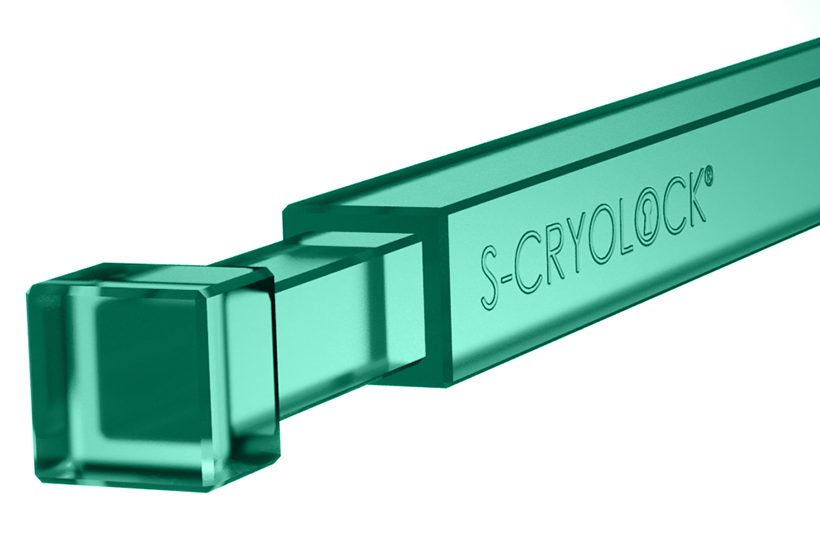

S-CRYOLOCK®
At the forefront of vitrification systems, S-Cryolock®
embodies simplicity and efficiency for unparalleled reproductive
success. Its sleek design, presented in a spectrum of vibrant colors –
Orange, Blue, Green, Yellow, and Clear – establishes a new standard for
versatility and user-friendly operation in assisted reproductive
procedures.

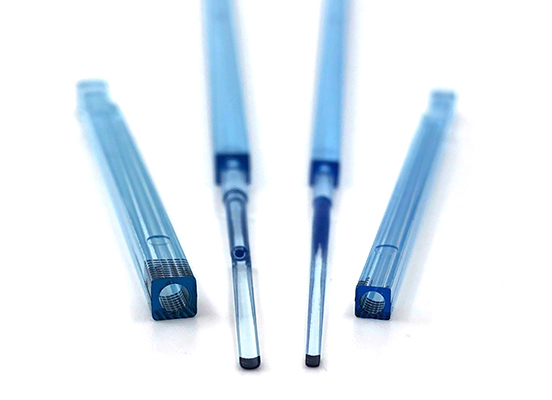

Cryolock® and S-Cryolock® - Vitrification Process Open System

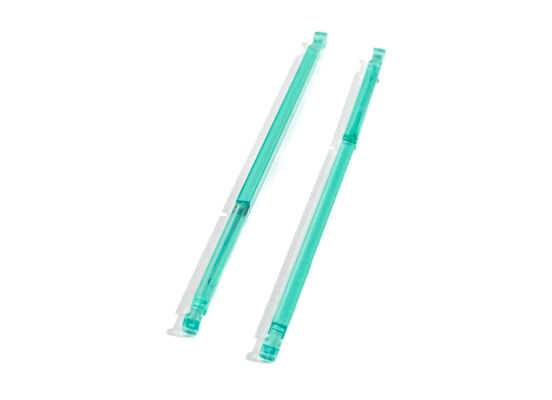

Cryolock® and S-Cryolock® - Vitrification Process Closed System
S-CRYOLOCK®
Specifications
- 1 cell MEA ≥80% expand blastocysts within 96h.
- Endotoxin LAL ≤ 2 EU/Device.
- Sterility: SAL 10⁻⁶
- Cooling rate:
- Closed System: -3,320°C/Min
- Open System: -29,500°C/Min
- Warming Rate:
- Closed System: +29,710°C/Min
- Open System: +40,500°C/Min

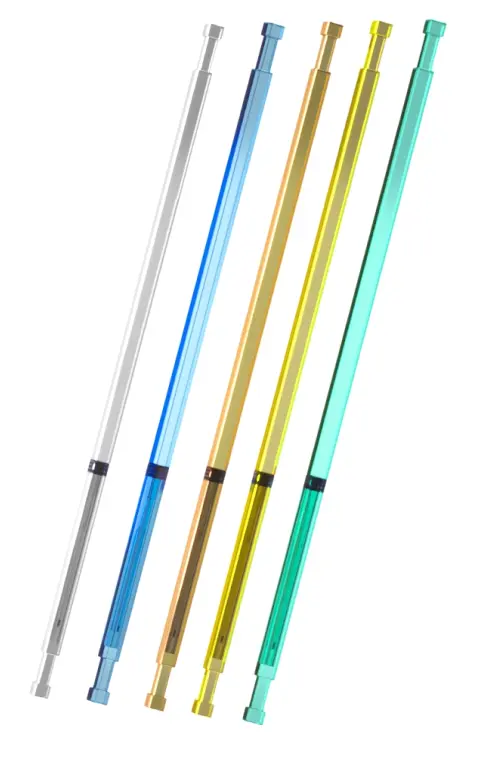

- Available on different colors: Clear, Blue, Green, Orange & Yellow.
S-CRYOLOCK®
Features
- Manufactured in medical-grade polystyrene to ensure integrity and safety.
- Exclusive cap design for an airtight seal at both room and freezing temperatures.
- Ample surface for labeling, facilitating sample identification.
- Available in various colors: Clear, Blue, Green, Orange, and Yellow.
- S-Cryolock® is more than a storage device; it’s a secure and effective solution for preserving 1-cell stage embryos.
- You can fit 10-12 units per goblet 10mm.
S-CRYOLOCK®
Intended Use
S-Cryolock® is a Cryopreservation
Storage device that is intended for use in vitrification procedures to
contain and maintain human 1-cell stage embryos. In non-US countries:
for Oocytes and/or Embryos.
S-CRYOLOCK®

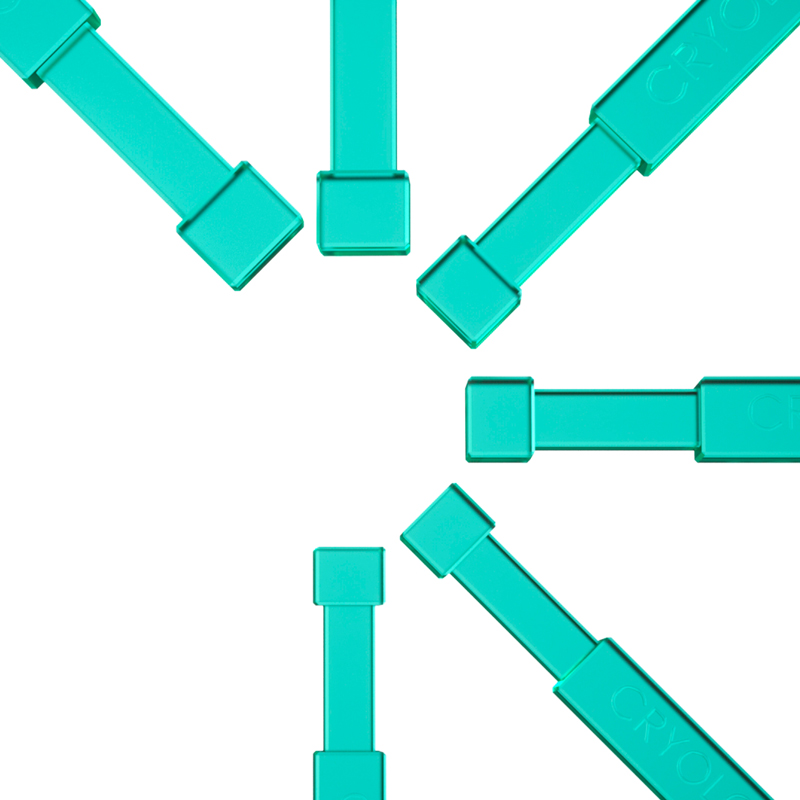

Design

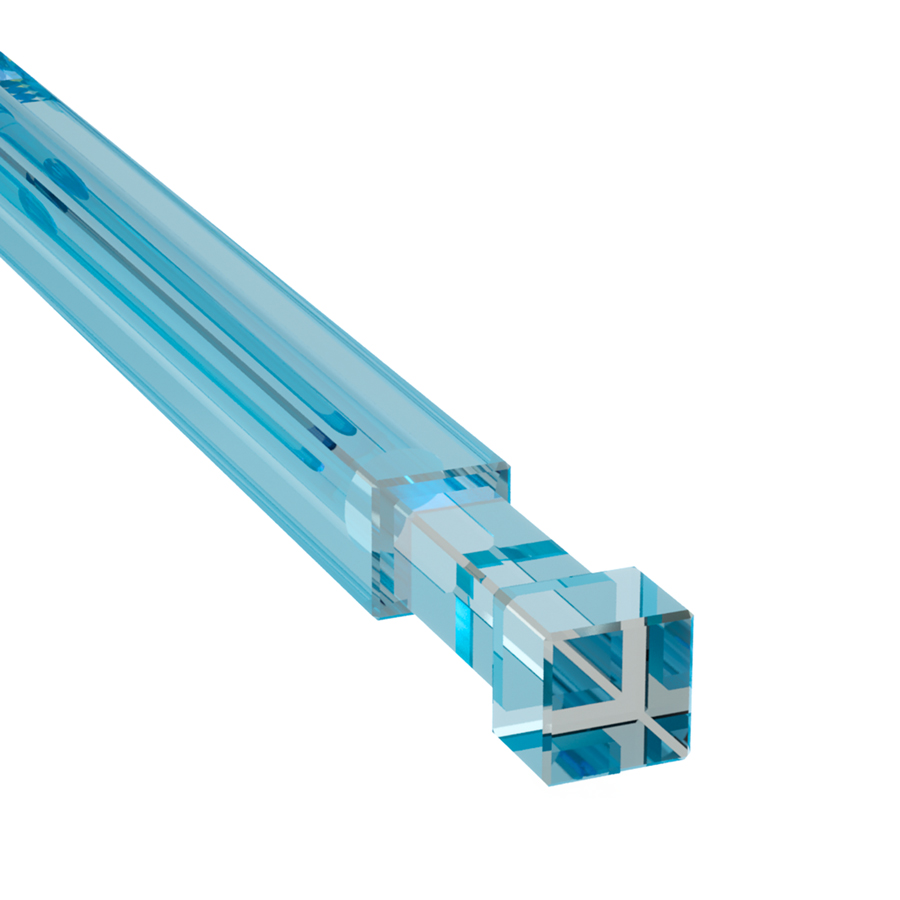

S-Cryolock®, is a square shape stick,
with four flat surfaces. Both, The Cap and Body possess the same
coefficient of expansion ensuring an equally secure coupling at room
temperature as well as low cryogenic temperatures. Body and cap have
gaps on their extremes, which allow easy grip with forceps during
manipulation.
S-CRYOLOCK®

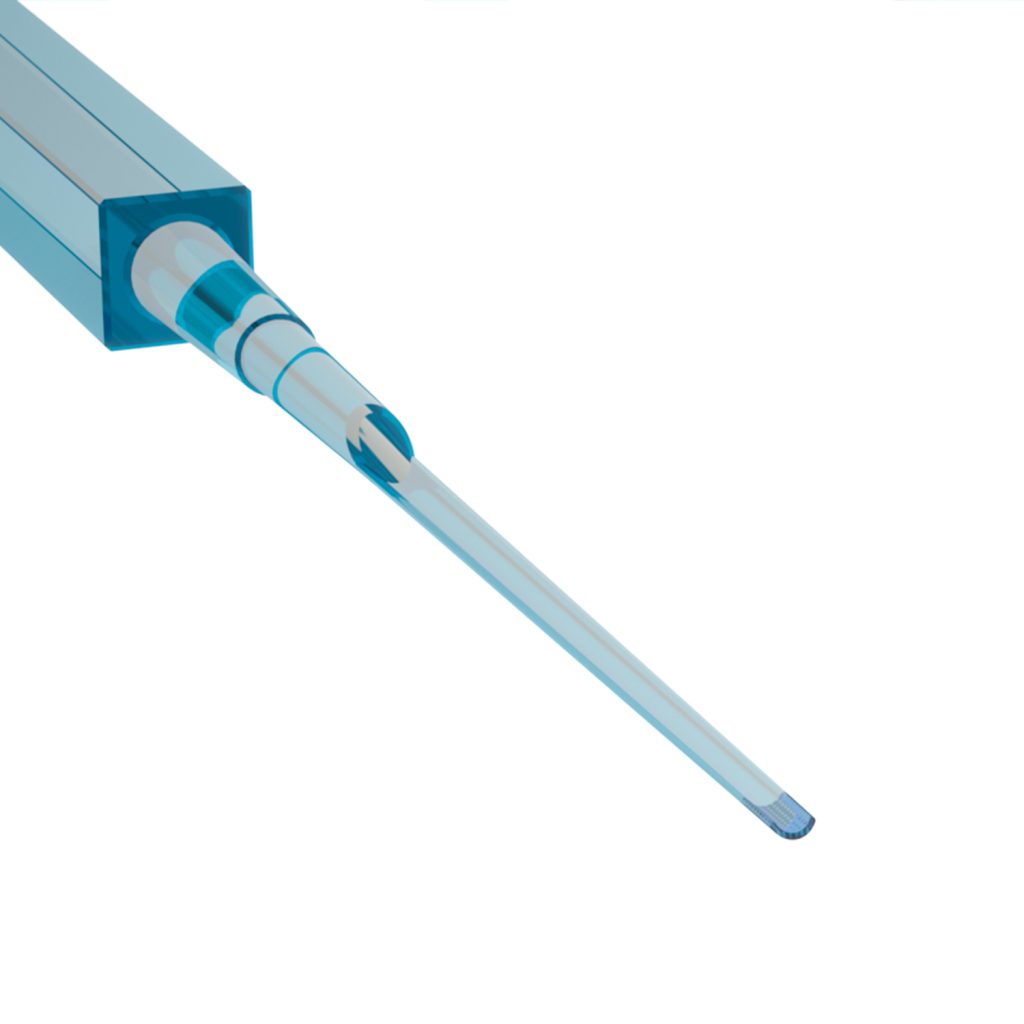

Material
S-Cryolock® components, body and cap
are made of Polystyrene medical grade plastic, which facilitates even
temperature conduction from side to side of the device.
S-Cryolock®
At the forefront of vitrification systems,
S-Cryolock® embodies simplicity and efficiency for unparalleled
reproductive success. Its sleek design, presented in a spectrum of
vibrant colors – Orange, Blue, Green, Yellow, and Clear – establishes a
new standard for versatility
and user-friendly operation in assisted reproductive procedures.
Cryolock® and S-Cryolock® - Vitrification Process Open System
Cryolock® and S-Cryolock® - Vitrification Process Closed System
Specifications
- 1 cell MEA ≥ 80% expand blastocysts within 96h
- Endotoxin LAL ≤EU/dDevice.
- Sterility: SAL 10-6
- Cooling rate:
- Closed system: -3,320°C/Min
- Open system: -29,500°C/Min
- Warming Rate:
- Closed System: +29,710°C/Min
- Open System: +40,500°C/Min
- Available on different colors: Clear, Blue, Green, Orange & Yellow.
Features
- Manufactured in medical-grade polystyrene to ensure integrity and safety.
- Exclusive cap design for an airtight seal at both room and freezing temperatures.
- Ample surface for labeling, facilitating sample identification.
- Available in various colors: Clear, Blue, Green, Orange, and Yellow.
- S-Cryolock® is more than a storage device; it’s a secure and effective solution for preserving 1-cell stage embryos.
- You can fit 10-12 units per goblet 10 mm.
Intended Use
S-Cryolock® is a Cryopreservation Storage device that is
intended for use in vitrification procedures to contain and maintain
human 1-cell stage embryos. In non-US countries: for Oocytes and/or
Embryos.
Design
S-Cryolock®, is a square shape stick, with four flat surfaces.
Both, The Cap and Body possess the same coefficient of expansion
ensuring an equally secure coupling at room temperature as well as low
cryogenic temperatures. Body and cap have gaps on their extremes, which
allow easy grip with forceps during manipulation.
Material
S-Cryolock® components, body and cap are made of Polystyrene medical grade plastic, which facilitates even temperature conduction from side to side of the device.

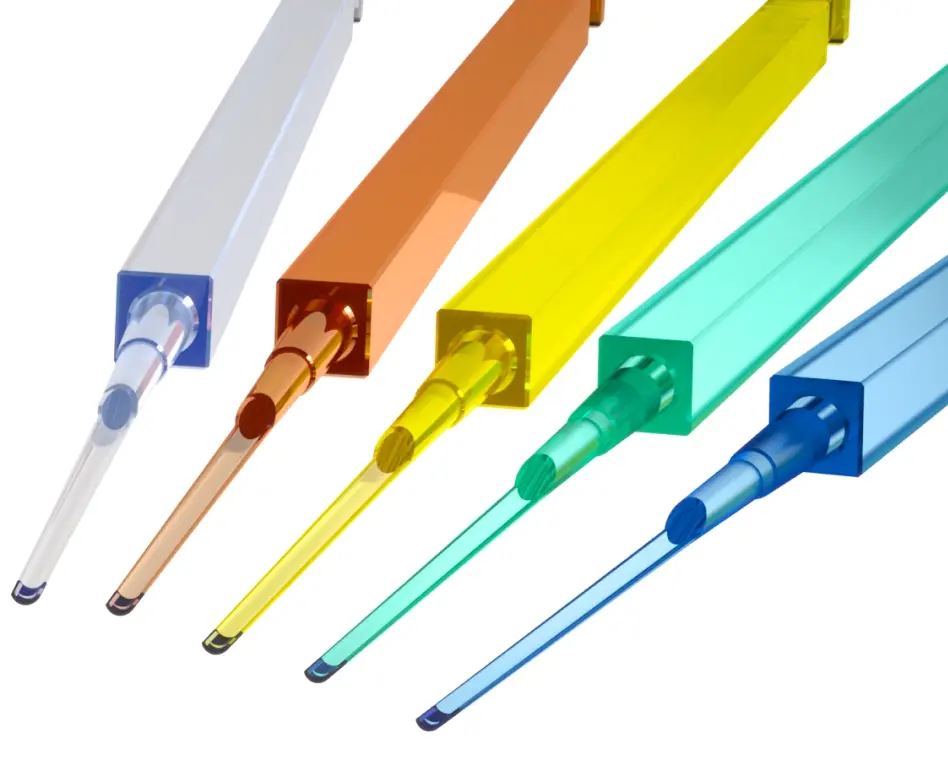

Instructions For Use (IFU)
Cryolock Family Devices may be used as an Open or a Closed System Device.
